1 Gasoline generator power source
2 External power supply

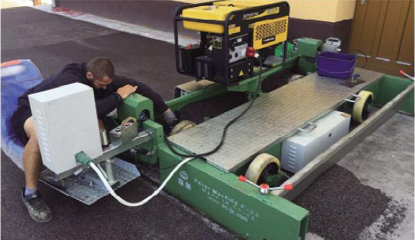

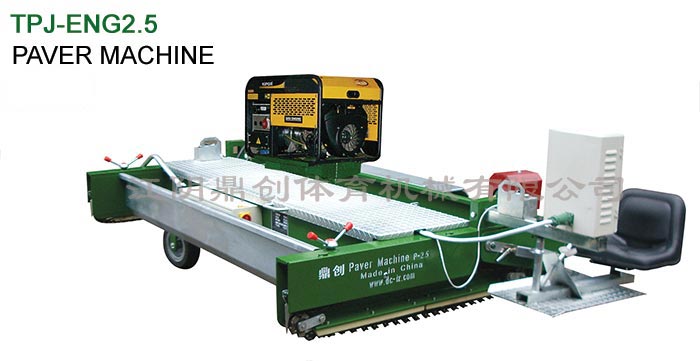

TPJ-ENG2.5 paver machine is the paving equipment of synthetic running track with high technical contained manufactured by our company.The machine is assembled the advanced technology of Simens frequency conversion stepless speed regulation and the hydraulic gear,enhance the automaticity of paving. Its performance satisfied the Sport fields construction requirement and achieve the quality and technical specification, its highly effective,low consumption,high quality and easy operation and so many good characteristics is approved by domestic and foreign customers.
| Main technical data |
| Paving Width: 2500mm |
| Moving Speed: 0.8-6m/min |
| Paving Capability: 500m2/h |
| Power: 8kw |
| Adjusted data of hydraulic pressure system:8Mpa |
| Adjusted temperature for electric board: 90℃ |
| Machine Weight: 1200kg |
| Appearance measurement: 3000×1800×720mm | |
 | |
